型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
125WQ130-15-11 |
φ125 |
130 |
15 |
1450 |
11 |
62 |
320 |
|
125WQ130-20-1 5 |
φ125 |
130 |
20 |
1450 |
15 |
63 |
320 |
說明：JYWQ型自動攪勻潛水排污泵性能參數等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ autostirring submersible
sewage pump are identical to those of model WQ submersible sewage pump (see the
table above), see the next page for the out-form dimensions.
|

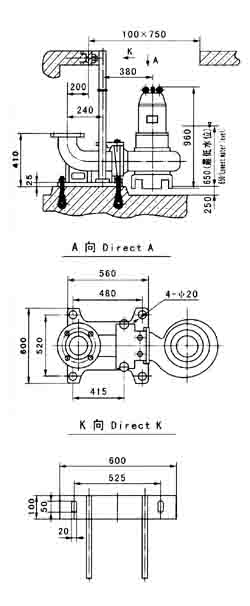

自動耦合式安裝
Auto-coupling
installation
|

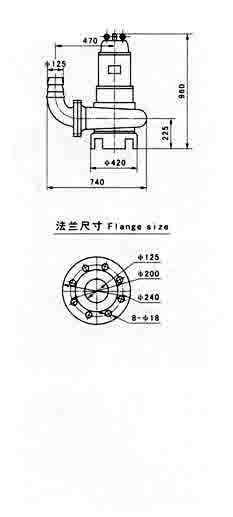

軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ
auto-stirring sewage pump．
|
