型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
250WQ600-15-45 |
φ250 |
600 |
15 |
1450 |
45 |
75 |
950 |
|
250WQ600-20-55 |
φ250 |
600 |
20 |
1450 |
55 |
73 |
1300 |
|
250WQ700-20-75 |
φ250 |
700 |
20 |
1450 |
75 |
78 |
1500 |
|
250WQ600-25-75 |
φ250 |
600 |
25 |
1450 |
75 |
73 |
1500 |
|
250WQ600-30-90 |
φ250 |
600 |
30 |
1450 |
90 |
72 |
1600 |
說明：JYWQ型自動攪勻潛水排污泵性能參數等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ aut-ostirring submersible sewage pump are identical to those of model WQ submersible sewage
pump (see the table above), see the next page for the out-form dimensions.
|

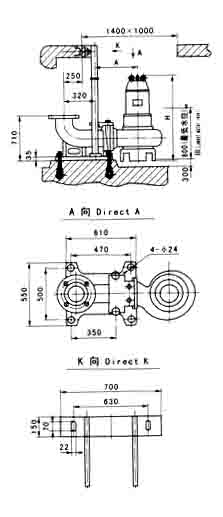

自動耦合式安裝
Auto-coupling
installation
|
軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ auto-stirring
sewage pump．
|
|
型號Model |
H |
A |
B |
C |
|
250WQ600-15-45 |
1650 |
530 |
1100 |
650 |
|
250WQ600-20-55 |
1690 |
550 |
1180 |
670 |
|
250WQ700-20-75 |
1720 |
550 |
1180 |
670 |
|
250WQ600-25-75 |
1720 |
550 |
1180 |
670 |
|
250WQ600-30-90 |
1720 |
550 |
1180 |
670 |
