3、泵的結構說明Instruction of pump’s Structure．
泵為立式安裝，由電機、軸、泵蓋、泵體、導葉體、葉輪等組成，泵軸套在電機軸伸上直接驅動葉輪工作。(見結構圖一)
泵裝有壓力真空表和壓力表。用戶要求時，也可裝旋液分離器。

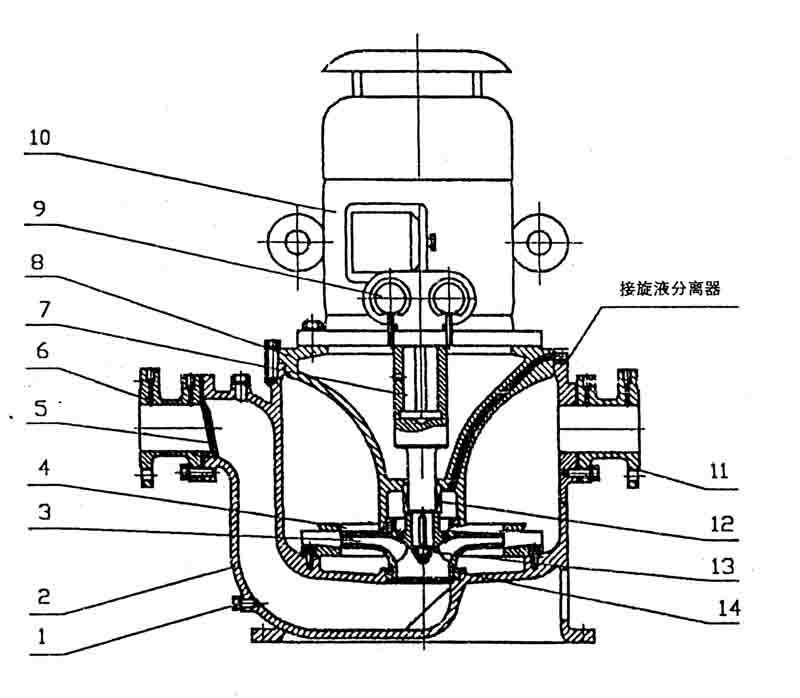

結構圖一：
The CLZ
serine Marine Vertical Centrifugal Pumps ale recommended to be vertically
installed．The
pump consists of electric motor,shaft，covers，body, impeller and wheel etc．The shaft of
pump connects with that of electric motor and drives airectly the impeller to rum．Refer to the drawing below：
A vacuum gauge and pressure gauge ale fitted in the pump．A wet cyclone Can be also connected to the pump as the customer requests． |
1、放泄螺塞2、泵體 3、葉輪 4、導葉體 5、止回閥片6、吸入閥體7、軸
8、泵蓋 9、儀表 10、電機 11、出口接管 12、機械密封 13、葉輪螺母
14、密封環
1．Plugs 2．Pump body 3．Impeller 4．Guide Shell 5．shim of non-return valve 6．Inlet
body 7．Shaft 8．Cover of
pump 9．Gauge 10．Electric
motor 11．Outlet
piping
12．Mechanical sealing 13．Nut of Impeller 14．Ring of sealing．
