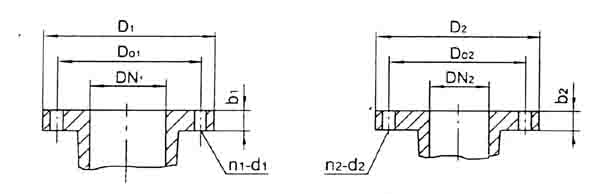

Flange Dimensions Of Type SMB(L)Pumps
|
|
進口法蘭Inlet Flange |
出口法蘭Discharge Flange |
||||||||||||
|
泵型號 Type |
HT250 |
QT400-18/ ZG230 |
HT250 |
QT400-18/ ZG230 |
||||||||||
|
DN1 |
Do1 |
D1 |
B1 |
n1-d1 |
Do1 |
n1-d1 |
DN2 |
Do2 |
D2 |
b2 |
n2-d2 |
Do2 |
n2-d2 |
|
|
SMB350-620 |
400 |
565 |
640 |
44 |
16-ф25 |
585 |
16-ф30 |
350 |
460 |
533 |
36 |
16-ф23 |
470 |
16-ф26 |
|
SMB400-540 |
500 |
650 |
715 |
42 |
20-ф33 |
650 |
20-ф33 |
400 |
525 |
580 |
38 |
16-ф30 |
525 |
16-ф30 |
|
SMB400-620 |
500 |
650 |
715 |
42 |
20-ф33 |
650 |
20-ф33 |
400 |
525 |
580 |
38 |
16-ф30 |
525 |
16-ф30 |
|
SMB500-530 |
600 |
725 |
840 |
48 |
20-ф30 |
770 |
20-ф41 |
500 |
620 |
705 |
42 |
20-ф25 |
650 |
20-ф34 |
|
SMB500-640 |
600 |
725 |
840 |
48 |
20-ф30 |
700 |
20-ф41 |
500 |
620 |
705 |
42 |
20-ф25 |
650 |
20-ф34 |
|
SMB500-710 |
600 |
770 |
840 |
48 |
20-ф41 |
770 |
20-ф41 |
500 |
650 |
705 |
42 |
20-ф41 |
650 |
20-ф41 |
|
SMB500-790 |
600 |
770 |
840 |
48 |
20-ф41 |
770 |
20-ф41 |
500 |
660 |
730 |
52 |
20-ф41 |
660 |
20-ф41 |
|
SMB500-900 |
600 |
770 |
840 |
48 |
20-ф41 |
770 |
20-ф41 |
500 |
660 |
730 |
52 |
20-ф41 |
660 |
20-ф41 |
|
SMB600-560 |
700 |
840 |
91O |
54 |
20-ф30 |
840 |
20-ф41 |
600 |
725 |
840 |
48 |
20-ф30 |
770 |
20-ф41 |
|
SMB600-620 |
700 |
840 |
910 |
54 |
20-ф30 |
840 |
20-ф41 |
600 |
725 |
840 |
48 |
20-ф30 |
770 |
20-ф41 |
|
SMB600-71O |
700 |
840 |
955 |
56 |
24-ф30 |
875 |
24-ф48 |
600 |
770 |
840 |
48 |
20-ф41 |
770 |
20-ф41 |
|
SMB600-870 |
700 |
840 |
955 |
56 |
24-ф30 |
875 |
24-ф48 |
600 |
770 |
840 |
48 |
20-ф41 |
770 |
20-ф41 |
|
SMB700-570 |
800 |
950 |
1020 |
56 |
24-ф33 |
950 |
24-ф41 |
700 |
840 |
910 |
54 |
24-ф30 |
840 |
24-ф41 |
|
SMB700-710 |
800 |
950 |
1020 |
56 |
24-ф33 |
950 |
24-ф41 |
700 |
840 |
91O |
54 |
24-ф30 |
840 |
24-ф41 |
|
SMB700-830 |
800 |
950 |
1020 |
56 |
24-ф41 |
950 |
24-ф41 |
700 |
8 |
910 |
54 |
24-ф41 |
840 |
24-ф41 |
|
SMB800-770 |
900 |
1050 |
1125 |
58 |
28-ф33 |
1050 |
28-ф39 |
800 |
900 |
1025 |
56 |
24-ф33 |
950 |
24-ф39 |
|
SMB800-880 |
900 |
1050 |
1125 |
58 |
28-ф33 |
1050 |
28-ф39 |
800 |
900 |
1025 |
56 |
24-ф33 |
950 |
24-ф39 |
|
SMB800-980 |
900 |
1050 |
1125 |
58 |
28-ф33. |
1050 |
28-ф39 |
800 |
900 |
1025 |
56 |
24-ф33 |
950 |
24-ф39 |
|
SMB900-1150 |
1000 |
1170 |
1255 |
64 |
28-ф42 |
1170 |
28-ф42 |
900 |
1050 |
1125 |
60 |
28-ф33 |
1050 |
28-ф33 |
